特色和優勢
- PCB outer diameter: 21.06mm
- Magnetic ring diameter: 14mm
- Pulse count: 12ppr
- Superior temperature stability
- Wide voltage range
- Easy installation
- 主頁 /
- 工業用品 /
- Industrial Electrical /
- Passive Components /
- Switch Encoders /
- YC2010-22 Incremental magnetic encoder for DC...
物品 #:
52822638
YC2010-22 Incremental magnetic encoder for DC motor 12PPR
物品 #:
52822638
0 ratings
轉寫評價
缺貨
從USA商店導入
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners
Non-contact encoder with dual quadrature outputs and long service life
Fast
Shipping
Free
Return*
Secure Packaging
100% Original Products
PCI DSS Compliance
ISO 27001 Certified
Note: Step Down Voltage Transformer required for using electronics products of 美國 store (110-120). Recommended power converters 立即購買.
What Stands Out
High Precision
With 12 pulses per revolution, the YC2010-22 ensures accurate positioning and feedback, making it ideal for applications requiring reliable motion control.
Compact Design
Its compact size allows for easy integration into various DC motor setups, providing flexibility without compromising on performance or space.
Durability
Engineered for longevity, this encoder withstands harsh conditions, delivering consistent performance and reduced maintenance over time, unlike many competitors.
產品詳情

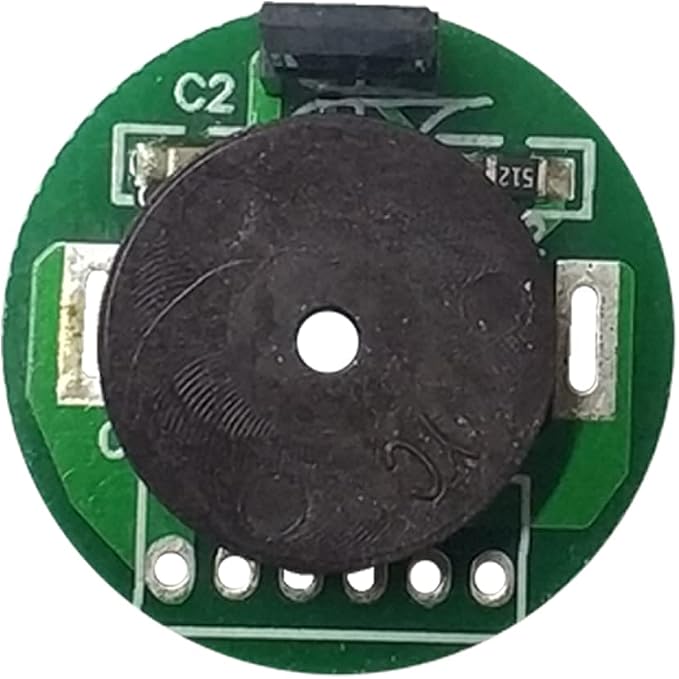

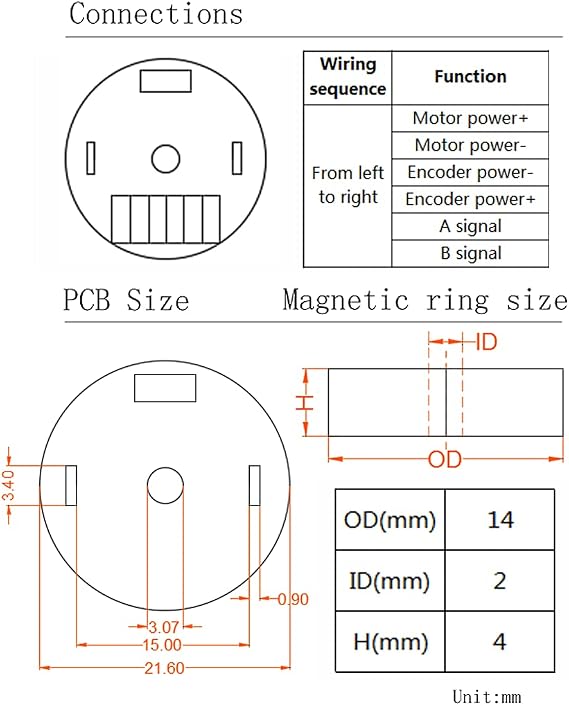

- PCB Outer Diameter Dimension: 21.06mm, Bore: 3.07mm, Thickness: 1mm
- Magnetic ring Diameter: 14mm, Bore: 2mm, Thickness: 4mm, Pulse Count: 12ppr

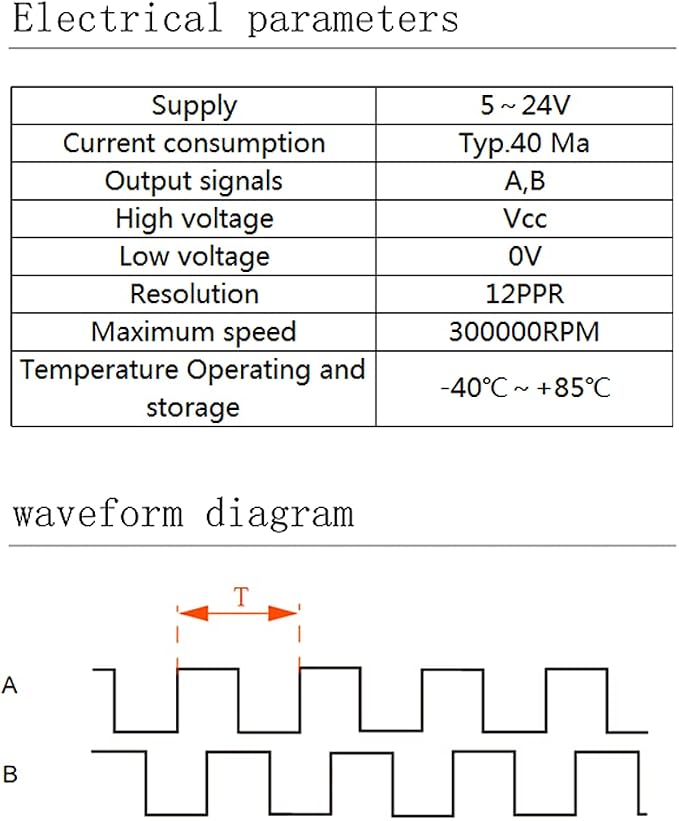

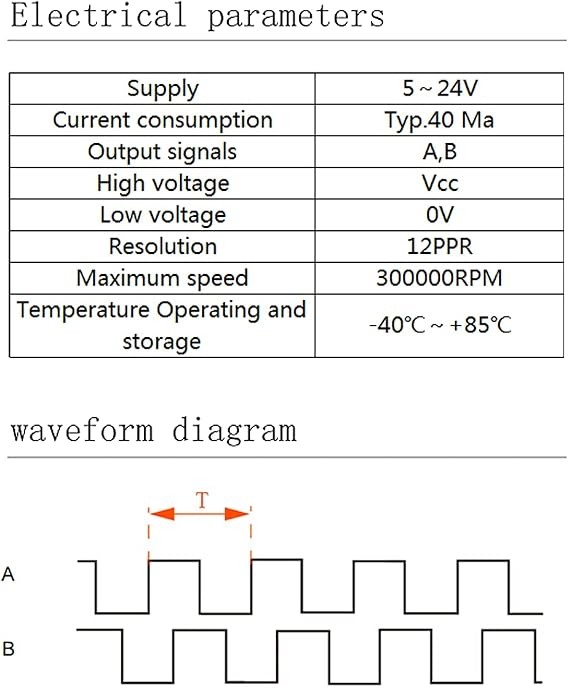

- Output Type: square wave double phase, Operating Temperature Range: -40℃~85℃
- Features: Simple structure, easy installation, dual quadrature outputs, non-contact with long service life, superior temperature stability, high sensitivity with a wide voltage range

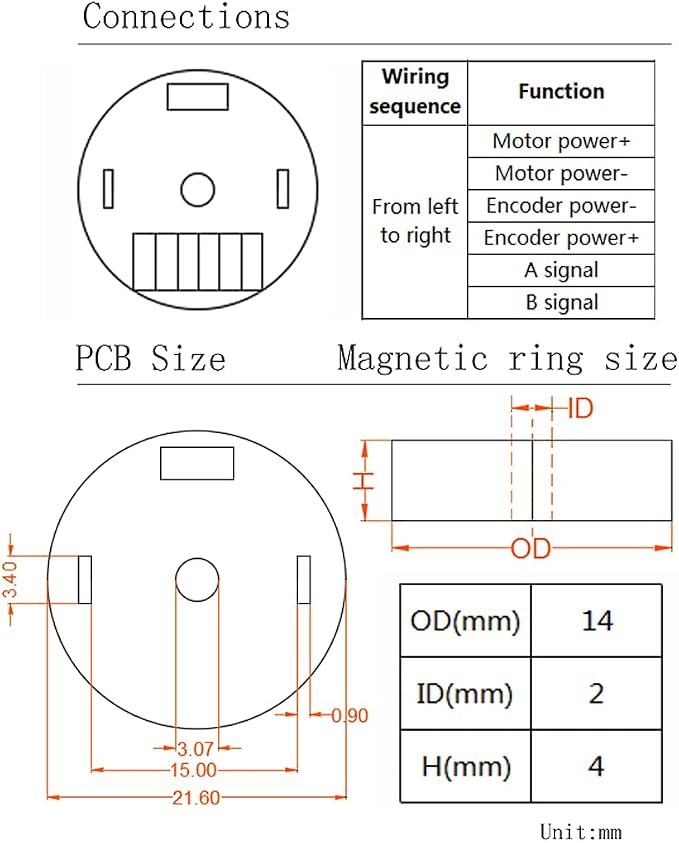

- Wiring Diagram: Motor power+, Motor power-, Encoder power-, Encoder power+, A signal, B signal
- Quality Guarantee: Resolve quality problems via email, continuous improvement of product quality and customer service
| Item Weight | 0.2 lbs (90 grams) |
Who Should Buy?
-
Robotics Enthusiasts
Perfect for hobbyists building robots requiring precise control of motor position with reliable feedback.
-
Automation Engineers
Ideal for engineers designing automated systems where accurate motor speed and position control is critical.
-
Educational Projects
Great for students and educators working on projects that need effective motor control and responsive feedback.
-
High-Speed Applications
Not suitable for applications requiring very high speed and precision, as 12PPR may not provide sufficient resolution.
產品敘述
YC2010-22 Incremental magnetic encoder for DC motor 12PPR
有疑問？ 與我們聊天
客戶問題＆回答
-
題:
What is the YC2010-22 Incremental magnetic encoder and how does it work?
回答: The YC2010-22 Incremental magnetic encoder is a type of sensor designed to convert the rotational position of a DC motor shaft into an electrical signal. It operates using a magnetized disk or strip that interacts with magnetic sensors, providing a positional feedback with 12 Pulses Per Revolution (PPR). This makes it ideal for applications requiring precise control, such as robotics and CNC machinery, as it allows for accurate speed and position detection. -
題:
What are the key features of the YC2010-22 encoder?
回答: The YC2010-22 encoder boasts several key features, including a 12PPR resolution, compact design, and robust magneto-resistive technology. Its small size makes it suitable for tight spaces, while the 12PPR ensures it delivers sufficient resolution for applications like automation and motion control. Additionally, its durability helps maintain performance in harsh environments, making it a reliable option for extensive use in industrial systems. -
題:
What applications benefit from using the YC2010-22 encoder?
回答: The YC2010-22 encoder is ideal for various applications including robotics, automated machinery, and conveyor systems. In robotics, it helps in precise movement and positioning. In automated machinery, it provides feedback for improved motion control. Similarly, in conveyor systems, it ensures consistent speed and alignment of products, making it versatile for anyone needing positional accuracy in their projects. -
題:
How do I install the YC2010-22 encoder on a DC motor?

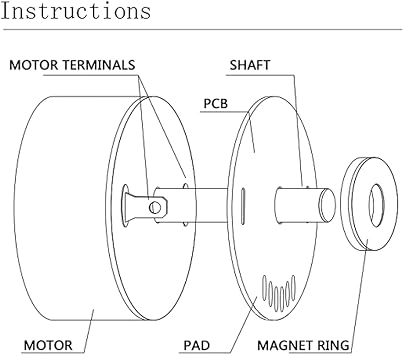

回答: Installing the YC2010-22 encoder is straightforward. First, securely attach the encoder to the motor shaft using the provided mounting hardware. Ensure the encoder aligns properly with its corresponding sensors. Then, connect the encoder's output wires to the motor controller or interface. This installation will enhance the DC motor's performance by providing real-time changes in the motor position, crucial for achieving precise control. -
題:
What is the difference between incremental and absolute encoders?
回答: Incremental encoders, like the YC2010-22, provide position information in relation to a set reference point, indicating movement direction and speed through pulses. Conversely, absolute encoders offer a unique position value from zero to the maximum range at any given time, making them more suitable for systems requiring absolute positioning. Your choice depends on the specific requirements of your project, such as the need for continuous movement data versus definitive position tracking. -
題:
What types of DC motors are compatible with the YC2010-22 encoder?
回答: The YC2010-22 encoder is compatible with a variety of DC motors, including brushed and brushless types. Its versatile design allows it to work efficiently with motors used in industrial applications, robotics, and automation systems. To ensure optimal performance, check the motor specifications for compatibility with the encoder’s mounting and electrical input/output requirements. -
題:
How do I troubleshoot issues with the YC2010-22 encoder?
回答: If you encounter issues with the YC2010-22 encoder, first verify all electrical connections to ensure proper wiring. Check for any physical obstructions or misalignment between the encoder and the motor. You should also compare the encoder's output signals with expected values using an oscilloscope. If issues persist, consulting the manufacturer's user manual for troubleshooting tips is a wise next step to understand specific encoder signals. -
題:
Is the YC2010-22 encoder durable for industrial applications?
回答: Yes, the YC2010-22 encoder is designed for durability, making it suitable for industrial applications. Its robust construction can withstand environmental factors such as dust, moisture, and vibrations often found in manufacturing settings. As a result, it can maintain accuracy and reliability over time, which is essential for applications requiring long-term operation and minimal maintenance. -
題:
What kind of feedback can I expect from the YC2010-22 encoder?
回答: The YC2010-22 encoder provides incremental feedback in the form of digital pulses corresponding to rotation. With its 12PPR resolution, you'll get 12 pulses for every full revolution of the motor shaft. This makes it useful for calculating both speed and positional data in motor-driven applications. For projects requiring continuous monitoring, this feedback allows for real-time data analysis and precise control adjustments. -
